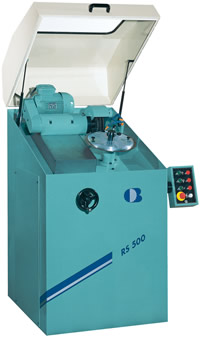

RS 500

Posted in Businaro



RS 500
Machine for grinding down the teeth on
circular saw blades

SPECIAL FEATURES
  • Total enclosure reducing noise and grinding dust
  • Fully recirculating coolant system
  • Rigid structure incorporating protected grinding wheel spindle and slide
  • Quick set-up time and very ease to use
  • Short grinding time
  • Clamping of circular saw without tools
  • Low maintenance cost achieved through modern design
OPTIONS
  • Electronic control for grinding slide e machine functions
  • Electronically controlled variable speed of saw blade rotation
  • Range of circular saw blade diameters 200 - 630 mm


TECHNICAL DATA

Saw blade diameter :
Grinding wheel diameter :
Grinding spindle shaft diameter:
Grinding wheel speed :
Saw blade speed :
Installed power :
Net weight :
Overall dimensions :

mm 110 - 500 (630)
mm 230
mm 22
U/min 4000
U/min 14
KW 3,5
KG 400
mm1050x1100x1500
  We reserve the right to make modifications
