REKORD CONTROL KS


REKORD CONTROL KS

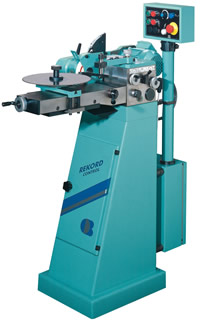

Automatic sharpening machine with pawl indexing for precise sharpening of HSS and segmental circular saw blades, with tooth form A, Aw, B, Bw, C, DIN 1840

SPECIAL FEATURES
  • Fully recirculating coolant system with splash guard
  • Waterproofed gearbox with all moving parts running in oil bath
  • Rigid and well protected carriage slides
  • Individual motors with separated controls for machine indexing and grinding wheel spindle
  • Electronically adjustable indexing speed
  • Two grinding wheel spindle speeds
  • One pass grinding of roughing and finishing teeth, form C, DIN 1840, with indicator lamp
  • Ability to grind flat and highly curved teeth
  • Quick adjustment for chamfering
  • Easy set-up of rake angle
  • Simple maintenance and quick set-up times

OPTIONS
  • Automatic infeed of saw blade towards the grinding wheel
  • Clamping fixtures for saw blade diameter 20-40, 30-70, up to 630 mm
  • Attachment for grinding of bandsaw blades
  • Attachment for grinding of hacksaw blades


TECHNICAL DATA

Saw blade diameter :


Maximum tooth pitch :
Maximum tooth depth :
Maximum saw blade thickness:
Maximum grinding wheel diameter :
Indexing speed (electronically controlled) :
Grinding wheel speeds :
Installed power :
Net weight :
Overall dimensions :


mm (20) 65 - 400 (550)
mm 24
mm15
mm 6
mm 150
Zähne/min 50 - 220
U/min 4200 - 5800
KW 1,4
KG 175
mm800x1240x1350

We reserve the right to make modifications
