REKORD 500 CNC
CNC grinding machine for the complete machining of HSS and solid carbide circular saw blades

This CNC grinding machine is suitable for re-sharpening or manufacturing of HSS and solid carbide circular saw blades. Using
CBN or diamond grinding wheels guarantees outstanding quality of
finish and precision with short cycle times. The machine uses the
latest computer technology to guide the operator through simple and
easily programmable menu driven display.

STANDARD FEATURES

  • Working area fully enclosed in a cabinet with interior lighting
  • High pressure coolant facility with filtering system and mist extraction unit
  • Electronic handwheel for manual positioning of grinding slide
  • Clamping of circular saws without tools
  • Quick adjustment for chamfering
  • Automatic centralized lubrication
OPTIONS

  • Extension of the circular saw blade diameter to 550 mm
  • Range of circular saw blade diameters 150 - 630 mm
  • Clamping fixture for circular saw blades diameter 50 - 150 mm
NOTE

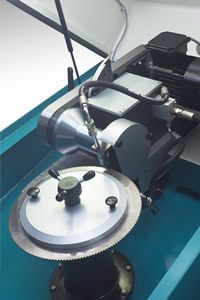

The photo shows the REKORD 500 CNC machine
equipped with clothing filter system for coolant, with
automatic in-feed of the cloth.

OPTIONAL SOFTWARE

  • Grinding of variable tooth pitch
  • Grinding of circular saw blades on a same diameter
  • Grinding of friction circular saw blades
  • Grinding of replaced segments in segmental saws
  • Grinding of solid carbide circular saw blades
  • Tooth geometry modification with storage of tooth forms
  • Grinding of special tooth forms
STANDARD SOFTWARE
  • Sharpening and manufacturing of circular saws according to DIN 1840
  • Chamfering of circular saw blade
  • Ability to save working cycle for future use
  • Compensation for the grinding wheel thickness
  • Clearance angle and rake angle freely programmable
  • Modification of the tooth depth ± 20%
  • Indication of working cycle time remaining




TECHNICAL DATA

Circular saw blade diameter

Teeth number
Maximum saw blade thickness
Grinding wheel
Working speed
Coolant system
Grinding wheel motor power
Installed power
Weight


mm(50) 150 - 500 (630)
20 - 998
mm 6
mm 150
Z/min 2 - 6
l/min 50 bei 7,5 bar
KW 2,2
KVA 5
kg 835
  We reserve the right to make modifications
